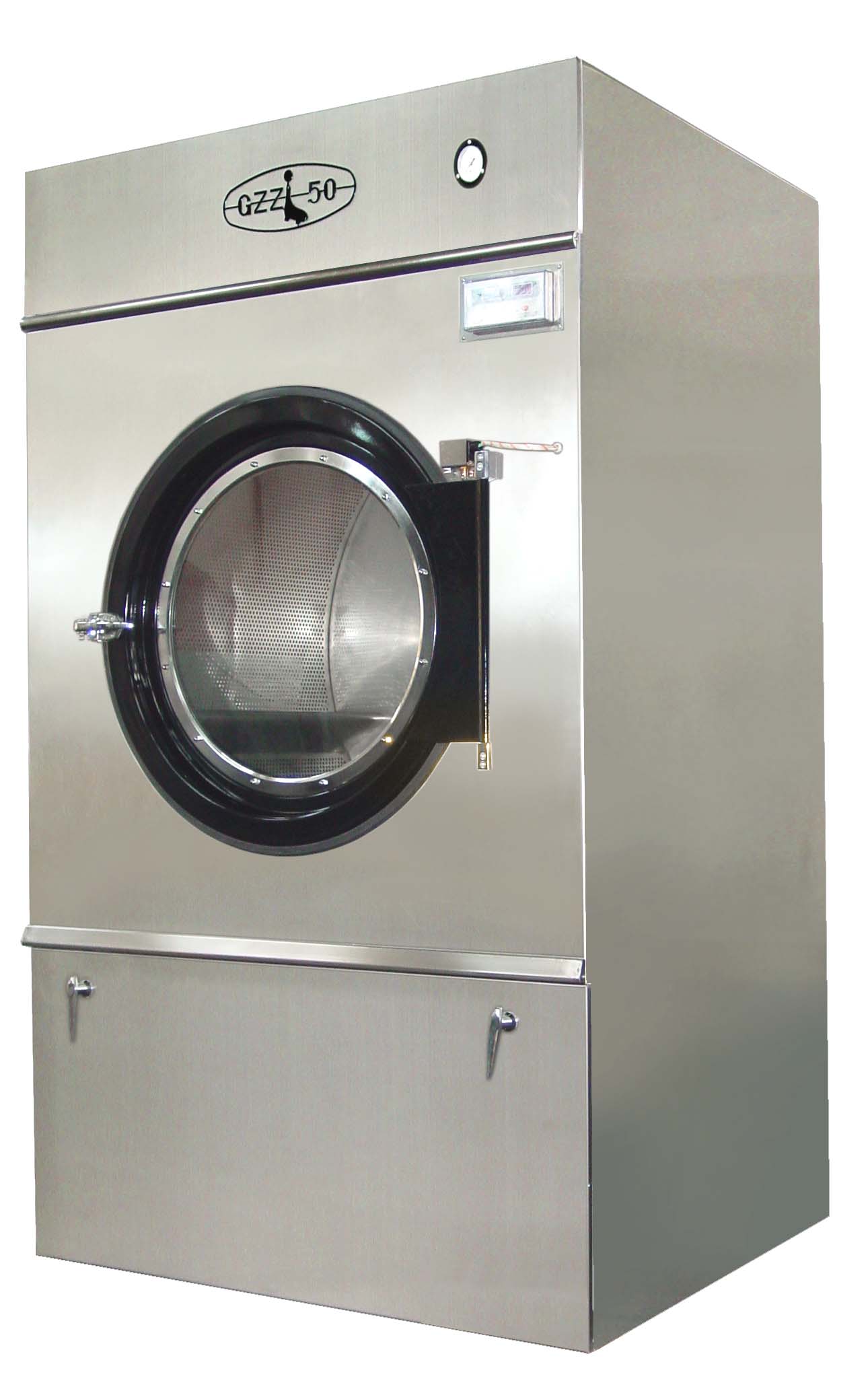

Tumble Drier

ALMAC dryers have been developed to ensure high productivity with a minimal use of energy. Shorter drying time means less wear of the fabric resulting in a longer life time and significant cost savings. With the function of automatic control and timer drying; the drum can run in clockwise and anti-lock wise. Large self-cleaning lint screen and large lint compartment for easy maintenance. Our energy saving features, plus our robust design ensures low cost ownership & infrequent maintenance.

Easy access

All vital parts have easy access from the front and rear for simple servicing. The drum suspension is Sturdy and has double sealed bearings and belt drive. In the front of the drum, two supporting rollers increase the stability of the drum.

Customized user panels

Customized user panels ensure the perfect solution for your specific needs. Temperature, time, programme, reverse drum action on/off and adjustment of cool down for trouble-free operation can be Individually selected.

Easy loading and unloading

The large diameter of the door opening on our tumble dryers ensures easy loading and unloading. For maximum accessibility, the door opens to nearly 180°. The door can be either hinged to the right or left-hand side for optimal flow in the laundry.

Lower Utility and Labour Costs

Our tumblers achieve the perfect balance between drying temperature,airflow pattern and usable cylinder space for maximum energy efficiency, shortening drying times - and reducing your utility and labour costs.

Technical Specification

MODEL GZZ/GDZ-15 GZZ/GDZ 25 GZZ/GDZ 50 GZZ 100
Capacity 15 25 50 100
Drum (DxL)mm 780 x 650 930 x 800 1200 x 946 1460 x 1180
Work Cycle Time (mins) 30 30 30 30
Motor Power (Kw) 0.55 0.75 1.5 3
Fan Motor (Kw) 0.37 0.75 1.5 3
Drum Speed (RPM) 45 35 32 30
Electric Heater (Kw) Elec.Heating 14.4 23.4 39 -
Steam Pressure (Mpa) 0.5-0.6 0.5-0.6 0.5-0.6 0.5-0.6
Steam Pipe (DN) mm 20 25 25 40
Steam Consumption/Cycle (Kg) 18 30 60 120
Power Consumption - Steam Heating (Kw) 0.5 0.9 1.8 3.2
Power Consumption - Electric Heating (Kw) 9 15 29 -
Dimesion(mm) 1150 x 870 x 1450 1270 x 1023 x 1760 1570 x 1265 x 2070 1915 x 1610 x 2300
Weight (Kg) 310 450 800 1600
