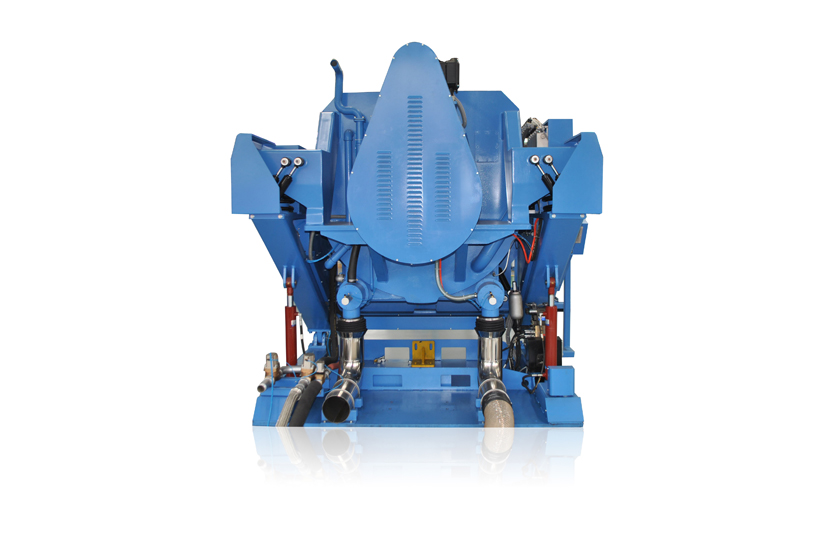

ALMAC Open Pocket Washer/Extractors feature are designed as two-way tilting for safe, easy loading and unloading. ALMAC makes the most of G-forces in the extraction process with increased cylinder diameters, providing maximum, efficient water removal.
ALMAC Open Pocket Washer/Extractors were designed to smoothly integrate into various plant layouts. These machines offer the largest processing capability in the industry to conserve the floor space. This is significant as operators look to maximize their productivity in their existing facilities. These type of washer extractors are designed and engineered for ease of use, space allocation limitation concerns and ergonomics. A unique feature to these machines is that the suspension has been redesigned to reduce the washer/extractor’s profile and to provide a reduction in vibration.
ALMAC’s Open Pocket range is available with forward (unloading) & backward (loading). The integral system allows the machine to tilt 18° backwards and 18° forwards, for easy loading and unloading. The bigger cylinder perforations provide better wash quality with the mix of clothes/linen, water, chemistry & mechanical action.
ALMAC’s open type washer extractors are designed to achieve 300 G of G force to remove more water consistently from each load, resulting in shorter drying time.
DESCRIPTION | UNIT | XGQ-100CF | XGQ-100CFQ | XGQ-200CFSQ |
---|---|---|---|---|
Capacity (Dry Load) | Kg | 100 | 100 | 200 |
Inner Drum x Length | mm | ꬹ 1240 x 840 | ꬹ 1240 x 840 | ꬹ 1645 x 1225 |
Outer Drum x Length | mm | ꬹ 1325 x 928 | ꬹ 1325 x 928 | ꬹ 1560 x 1100 |
Washing / Balancing Speed | rpm | 40/65 | 40/65 | 32/56 |
Middle Extracting Speed | rpm | 300 | 300 | 300 |
High Extracting Speed 1-4 | rpm | 350/500/620/800 | 350/500/620/800 | 360/450/550/620 |
Motor Power | Kw | 7.5 | 7.5 | 30 |
Unloading Tilting Angle | 18° | 18° | ||
Loading Tilting Angle | 18° | |||
Steam Pipe Diameter | DN | 25 | 25 | 40 |
Cold & Hot Water Pipe Dia | DN | 40 | 40 | 50 |
Outlet Drainage Diameter | mm | 132/2 (the root) PC | 159/2 (the root) | 114/2 (the root) PC |
Compressed Air Inlet Dia | mm | 8 | 8 | 10 |
Steam Pressure | Mpa | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 |
Water Pressure | Mpa | 0.2-0.4 | 0.2-0.4 | 0.2-0.4 |
Compressed Air Pressure | Mpa | 0.4-0.6 | 0.4-0.6 | 0.6-0.7 |
Water Consumption | Ltr | 1500 | 1500 | 2400 |
Electric Consumption | Kw | 1.8 | 1.8 | 2.6 |
Steam Consumption | Kg | 50 | 50 | 85 |
Air Compressir Capacity | m3/min | 0.1 | 0.1 | 0.13 |
Power Supply | V/P/Hz | 380/3/50 | 380/3/50 | 380/3/50 |
Dimension (WDH) | mm | 2060 x 1890 x 2170 | 2345 x 1860 x 2175 | 2480 x 2495 x 2590 |
Weight | Kg | 3240 | 3780 | 6800 |
