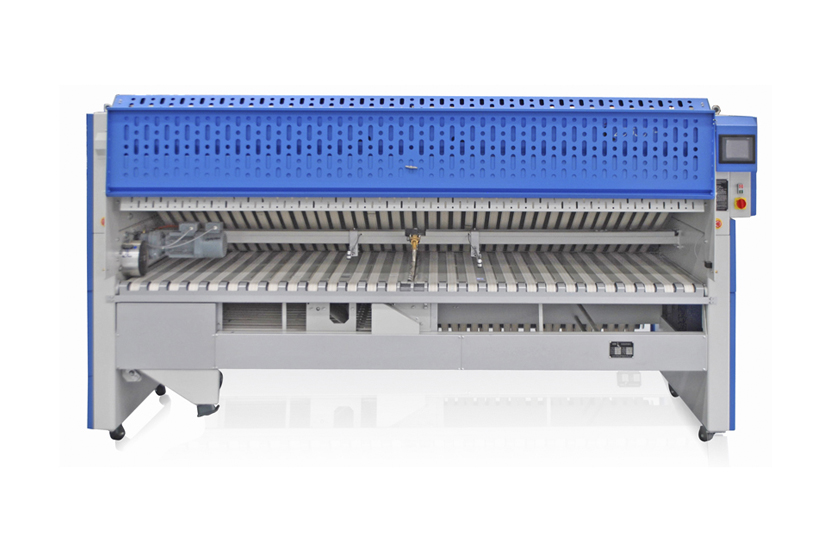

Automatic Linen Folder

  • Automatic Linen Folder can fold the dried & ironed linens automatically with perfect folding. Fully automatic and intelligent control system with big LCD screen enables extremely efficient Linen folding. The computer screen has dialogic function.
  • Folding programs can be selected according to different types of linen. 2-5 folds can be performed under the control of the computer.
  • Each piece is measured before it enters the first primary fold. The microprocessor selects the appropriate primary fold settings. Now folded, the piece is measured again prior to entering the cross-fold section initiating the desired cross-fold settings. After the cross folds are made, the piece is discharged towards the stacker station.
  • Photoelectric detection and speed testing system control cloth transmission speed and precisely fold based on measuring cloth size.
  • Self-diagnostic and safety protection system, easy operation and daily maintenance.
  • Transmission system with a fabric speed control and precise positioning can accurately determine length of the fabric and calculate the fold length.
  • Two independent drive motor controlled by VFD, having the function of adjusting steeples folding speed within 50m/min and can match all types of ironing machines.
  • Adjustable speed can adopt corresponding ironing machine and it can work together with ironing machine via communication control. The folder speed can be adjusted according to the ironing machine speed automatically.

Technical Specification

Folding Length x Width (mm) 3600 x 3300
Speed (m/min) 30
Air Pressure (Mpa) 0.5-0.7
Compressed Air Consumption(L/min) 80
Motor Power (Kw) 1.12
Power Consumption (Kw/hr) 0.6
Dimesion (mm) (LWH) 4940 x 2530 x 1930
Fan Motor (Kw) 0.75
Distillation Motor Power (Kw) Elec. Heating 5.4
Drying Power (Kw) Elec. Heating 7.2
Carbon Adsorber Motor (Kw) -
Washing/Extracting Speed (RPM) 40/400
Steam Pressure (Mpa) 0.4-0.5
Water Pressure (Mpa) 0.2-0.3
Steam Pressure (Mpa) 0.4-0.5
Air Pressure (Mpa) 0.5-0.7
Dimesion(mm) 4940 x 2530 x 1930
Weight (Kg) 1450
